    Black 2 Core DC Cable Low Toxicity High Voltage And Current Carrying Capacity

    Ask Lasest Price
    Brand Name : Pntech
    Model Number : PV1-F 2x4mm2
    Certification : TUV/CE/ISO9001
    Price : Negotiation
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 50000m per day
    Delivery Time : 3-10days
    • Product Details
    • Company Profile

    Black 2 Core DC Cable Low Toxicity High Voltage And Current Carrying Capacity

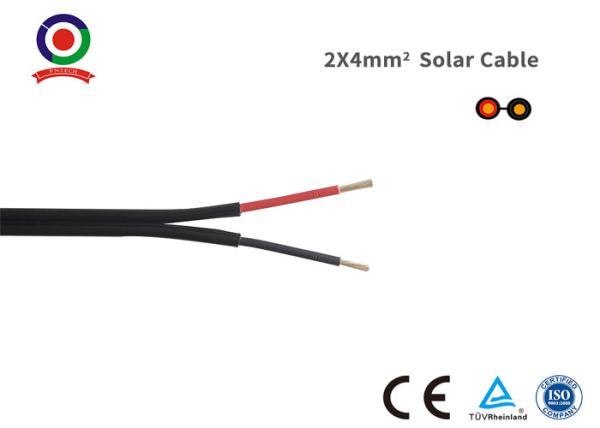

    TUV PV1-F 2 PFG 1169 Flat XLPE double insulation 2x4mm2 DC 2 Core Solar cable

    Description:

    Cross-Section: 2×4mm2
    Rated temperature: -40~90C
    Rated Rating:DC:1/1.8kv AC:0.6kv
    Rated Current: 41~98A
    Weathering Resistance: Sun Res

    Specification:

    ItemUnitTechnical parameter
    Rated temperature°C-40~90
    Rated Ratingac/dc(kv)0.6~1.0/1.8
    Cable CoreNo.2
    Cross-Section Areamm22×2,52×4,02×6,02×102×16
    Number/ Diameter of wiresNO./mm2*50/0.252*52/0.32*84/0.32*142/0.32*128/0.4
    Thickness of the Insulationmm≥0.5≥0.6≥0.7≥0.8≥1.0
    Thickness of the Sheathmm≥0.5≥0.6≥0.7≥0.8≥0.9
    Cable OD./Flatmm11*513*615*720*922*10
    Conductor resistance(20°C)Ω/km≤9.45≤7.98≤3.30≤1.91≤1.24
    Voltage test on completed cablekV/min

    6.5/5 No breakdown


    Advantage:

    · Dual wall insulation.Electron beam cross-linked
    · Excellent resistance to U.V,oil,greases,oxygen and ozone
    · Excellent resistance to abrasion
    · Halogen free, flame retardant,low toxicity
    · Excellent flexibility and stripping performance
    · High Voltage and Current carring capacity
    · TUV approved
