Male & Female 1 Pair IP67 Solar Panel 30A Line Plug Socket
Connectors/pins
Without extra instrument for the removal of plugs and removal will
not cause any harm to plugs.Solar connector is most used in solar photovoltaic power generation
system of a special connector, the connector (compatible with MC4
connector) is a solar pv panels in series with a parallel array
module when the special connector, reliable connection rapidly,
waterproof and dustproof, easy to use etc, shell has strong
anti-aging, uv resistant ability, the cable connection adopts the
hoops and clamping method connection, male and female head fixed
with stable self-locking mechanism, open and close freely.It is an
important component of solar power system.Product scientific
structure, selected materials, to ensure that all mechanical and
electrical properties are good.
It is recommended to use wire clamp to press the line, wiring
method and order, if there is no wire clamp can also use iron clamp
to press the line (preferably soldering tin).
Solar PV Connector, with TUV certified, has inner drum-type
material metal connectors, the plugs and minus connector are used
with the cable, made of PC material, easy to connector with each
other. It is important and indispensable components for
photoelectric system.
| Type: connector PV004-EN |
| Electrical Features: |
| Rated Current | 25A(2.5/4mm2),30A(4/6mm2) |
| Withstanding Voltage | 1000V DC(TUV),600V(UL) |
| Contact Resistance | ≤0.3mΩ |
| Protection Class | Class II |
| Mechanical Features: |
| Temperature Range | -40 oC~+90oC |
| Protection Degree | IP2X,unmated;IP67,mated |
| Wire Size Range | 2.5/4/6mm2(14AWG,12AWG,10AWG) |
| Unmating Force | 200 Newton |
| Material Features: |
| Insulation Material | PC |
| Contact Material | Copper,Tin plated |
| Flame Class | UL94-V0 or UL94-5VA |
Advantage
• Simple,quick,safe and effective filed assembly
• Develop independently,innovative design,have independent
intellectual property rights,adaptive to connector directly
• High mechanical endurance
• High current and voltage carrying:30A,1000VDC
• Low transition resistance
• Innovative sealed,waterproof,dust resistance design:IP68
• Excellent plastic material ,UL 94-V0,wide temperature range:-40°c
to 90°c,weather and UV resistant for long-time outdoor application
• Approved by TUV

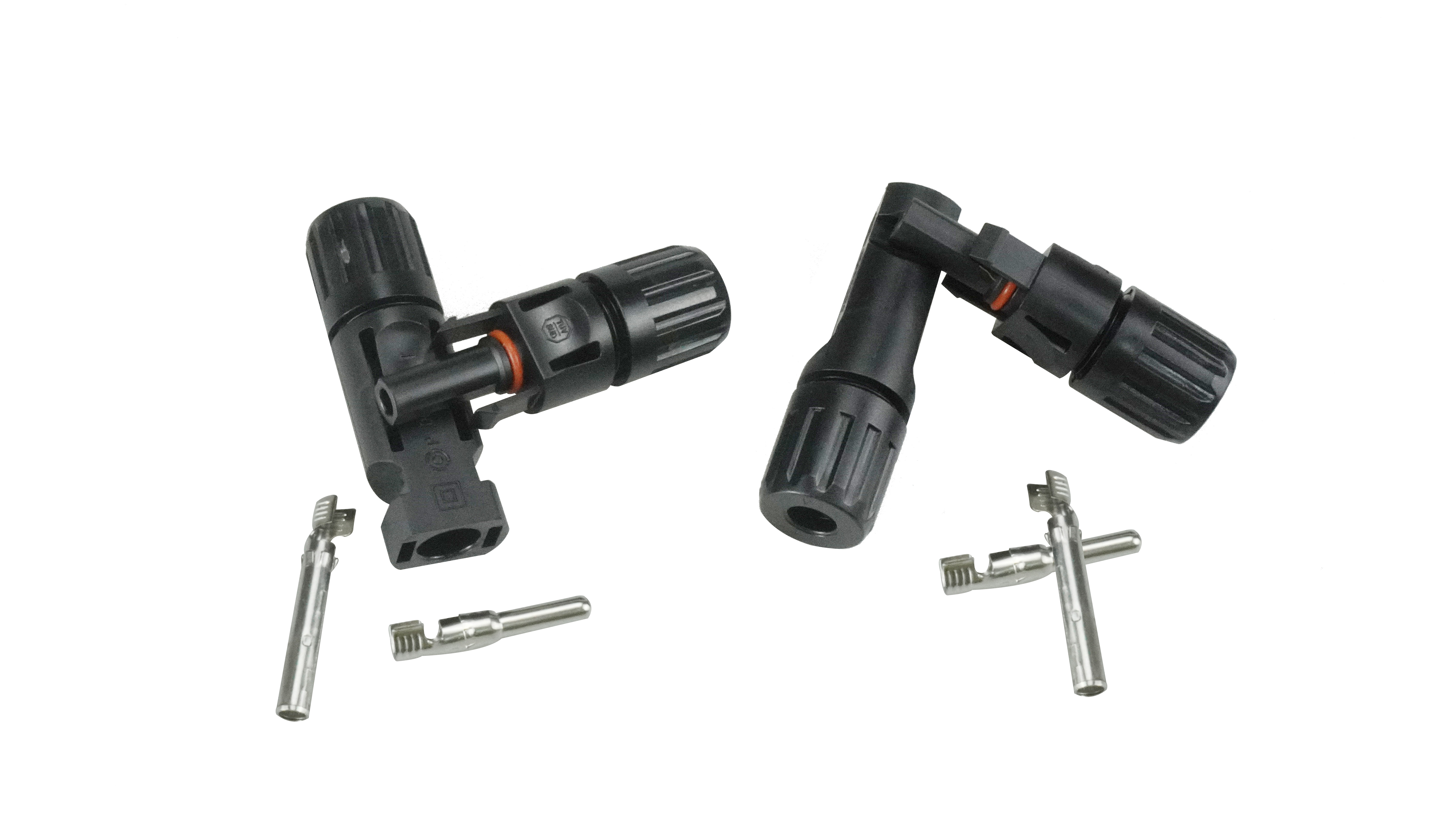

Picture of Plug Socket Connectors/pins
FAQ:
1. When can I get the quotation?
Within 24 hours of getting the inquiry, if you are very urgent to
get the price, please call us to give complete specifications about
the connector. price will be calculated soon.
2. How long about the delivery?
Usually within 3-4 working days after payment, mainly according to
the quantity.
3. What's your payment terms?
We accept T/T (bank transfer), L/C
4. Do you accept the customized order?
Yes, we do.
5. Do you offer OEM & ODM?
Yes. OEM & ODM are available.
