100m TUV Stranded Oxygen Free Copper 4mm2 twin core Solar Cable for solar system

Specification:

Solar cables should also be resistant to impact, abrasion and tear, its minimum bending radius should be not more than 4 times of overall diameter. It should be characterized by its safe pulling force--50 N/sqmm.The cable’s insulation must withstand thermal and mechanical loads, and accordingly plastics been cross-linked are increasingly used today, they not only withstand severe weather conditions and are suitable for outdoor usage, but also are salt water resistant, and due to the halogen-free flame resistant cross-linked jacket material they can be used indoors in dry conditions.

Description:

Conductor: Tinned Copper,according to VDE0295/IEC60228,Class5

Insulation: Electron-beam cross-linked Polyolefin Copolymer TUV 2PfG/1169

Sheath: Electron-beam cross-linked Polyolefin Copolymer TUV 2PfG/1169

Nominal Voltage : AC 600/1000V DC 1000/1800V

Characteristic: Heat-resistant flame retardant,UV/ozone/hydrolysis/climate resistance

Sheath Color :Black or as per customer's requeit

Temperature Rating:45°c upto +125°c -40°F upto +257°F

Ambient temperature:25years(TUV) -40°c upto +90°c -40°F upto +194°F

Max.Short circuit temperature:280°c,+536°F

Bending Radius:Fixed installation>4X Occasionally moved>5X

Advantage:

1. 99.9% high-purity oxygen-free copper: high quality tin-plated copper, high purity, anti-aging, high electrical conductivity, low loss, strong current carrying capacity, high corrosion resistance, and can adapt to outdoor harsh environment.

2, low eccentricity: thickness uniformity, effectively prevent the current breakdown fire, to ensure safety.

3. Double protection: The solar photovoltaic cable adopts insulation and Jacket double protection structure to extend the service life of the cable.

4, high-performance polymer materials: Insulating and jacket all use environmentally friendly low-smoke halogen-free flame-retardant cross-linked polyolefin materials, with wear-resistant, high temperature, oil, ozone, UV, high flame retardant properties.

5, strong flexibility: cable has a pressure, bending, strong toughness.

6, long service life: normal outdoor use, service life> 25 years

7, advanced equipment: The company has advanced foreign production, scientific research equipment, passed the ISO9001-2008 quality management system certification, IATF16949: 2016 quality management system certification.

FAQ:

1. When can I get the quotation?
Within 24 hours of getting the inquiry, if you are very urgent to get the price, please call us to give complete specifications about the cable. price will be calculated soon.

2. How long about the delivery?
Usually within 3-4 working days after payment, mainly according to the quantity.

3. What's your payment terms?
We accept T/T (bank transfer), L/C

4. Do you accept the customized order?
Yes, we do.

5. Do you offer OEM & ODM?
Yes. OEM & ODM are available.

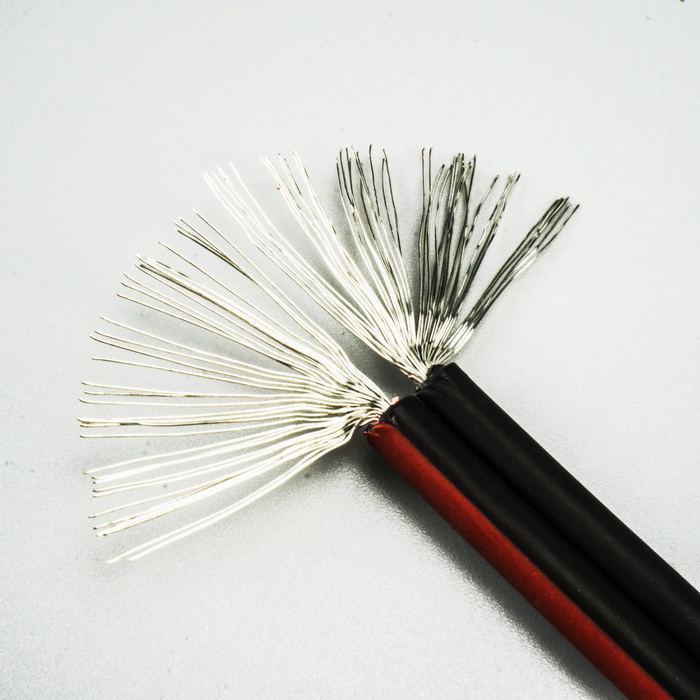

Picture of twin core solar cable 2.5mm2

ZHEJIANG PNTECH TECHNOLOGY CO. LTD.

It was founded in 2011 and has 10 years of experience in photovoltaic cable production. The company has passed ISO9001 management system certification. The photovoltaic cable series has passed the German TUV and China CQC certification. Certificate covers 1.5sqmm-25sqmm. Our product is produced by special photovoltaic materials, using advanced electron beam irradiation cross-linking technic. Our product can be used for a long time in an environment of minus 40 degrees, and with strong UV resistance. Main Products: Photovoltaic cables, Photovoltaic connectors,PV Junction Box, Solar PV connectors, solar photovoltaic Controllers, PV inverters for solar energy, photovoltaic systems, batteries, etc.

Due to our high quality and good service, our products have been exported to all over the world such as UK, USA, Mexico, Germany, France, Poland, Netherland, Sweden, France, Portugal, Spain, Italy, Australia, Singapore, Malaysia, Thailand, etc.And our products are approved by TUV, CE and ISO9001.

How are we doing it is Skilled , long –term employee , satisfied customers , modern equipment , no-compromise – for – quality values , full range of services , experience , and a sincere commitment to satisfying the requirement of our customers.

Quality product performance and good reputation, our products are not only successful sales in China, and have been exported to more than 120 countries and regions in the world, including: Germany, Japan, Italy, Russia, Japan, South Korea, Turkey, Brazil , India, the United Arab Emirates, Saudi Arabia and other countries, the products are subject to a great welcome and praise.

Our main goal is to conserve the environment through generating clean, sustainable and efficient energy in order to ensure a "greener future” for all mankind. We have the responsibility to increase awareness in renewable energy and assist households and business owners to Go Green and reduce their operational costs.

We attend SNEC in Shanghai every year to show our products to customers all around the world.
