TUV CE dual certificate 6mm single core solar cable XLPO insulation PV wire

Description:

Solar cables should also be resistant to impact, abrasion and tear, its minimum bending radius should be not more than 4 times of overall diameter. It should be characterized by its safe pulling force--50 N/sqmm.The cable’s insulation must withstand thermal and mechanical loads, and accordingly plastics been cross-linked are increasingly used today, they not only withstand severe weather conditions and are suitable for outdoor usage, but also are salt water resistant, and due to the halogen-free flame resistant cross-linked jacket material they can be used indoors in dry conditions.

Solar pv cables are double insulated flexible cables designed for use with solar pv systems. The fine multi-stranded copper conductors are tinned for corrosion resistance, and the outer insulation sheath is highly resistant to UV degradation.

Commercial solar PV panels over 50 watts or so use 10 gauge (AWG) wires. This allows up to 30 amps of current to flow from a single panel. If multiple panels are combined in parallel, then a three to eight AWG “combiner” wire set is generally needed to safely transfer the power to a charge controller.

Cross-Section: 1x6mm2

Rated temperature: -40~90C

Rated Rating:DC:1/1.8kv AC:0.6kv

Rated Current: 41~98A

Weathering Resistance: Sun Res

Specification:

Advantage:

· Dual wall insulation.Electron beam cross-linked

· Excellent resistance to U.V,oil,greases,oxygen and ozone

· Excellent resistance to abrasion

· Halogen free, flame retardant,low toxicity

· Excellent flexibility and stripping performance

· High Voltage and Current carring capacity

· TUV approved

Solar cables have a lot of benefits besides being nature-friendly they stand out among others with durability that lasts around 30 years regardless of the weather condition, temperatures and they are ozone resistant. Solar cables are protected against ultraviolet rays. It is characterized with low smoke emission, less toxicity, and corrosivity in the fire. Solar cables can withstand flames and fire, they can be easily installed and they are recycled without problems as modern regulations about environment require. Their different colors enable their fast identification.

Packing:

Standard Export package:

200m/roll,1000m/roll on the pallet or wooden drum

Delivery:

Within 3-10 working Days once Order Confirmed

Port: Ningbo, or other ports as per your requireents.
Sea freight:FOB/C&F/CIF quotation are all available.
*For some countries such as Africa countries, middle east countries, our sea freight quotation is much cheaper than clients get from local shipping agency

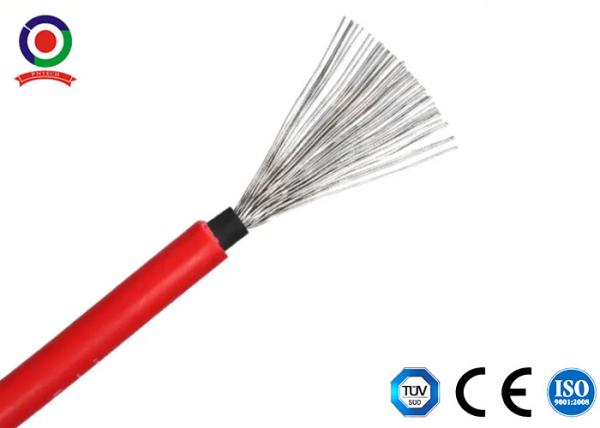

Photo of DC solar wires 6mm2

ZHEJIANG PNTECH TECHNOLOGY CO. LTD.

It was founded in 2011 and has 10 years of experience in photovoltaic cable production. The company has passed ISO9001 management system certification. The photovoltaic cable series has passed the German TUV and China CQC certification. Certificate covers 1.5sqmm-25sqmm. Our product is produced by special photovoltaic materials, using advanced electron beam irradiation cross-linking technic. Our product can be used for a long time in an environment of minus 40 degrees, and with strong UV resistance. Main Products: Photovoltaic cables, Photovoltaic connectors,PV Junction Box, Solar PV connectors, solar photovoltaic Controllers, PV inverters for solar energy, photovoltaic systems, batteries, etc.

Due to our high quality and good service, our products have been exported to all over the world such as UK, USA, Mexico, Germany, France, Poland, Netherland, Sweden, France, Portugal, Spain, Italy, Australia, Singapore, Malaysia, Thailand, etc.And our products are approved by TUV, CE and ISO9001.

How are we doing it is Skilled , long –term employee , satisfied customers , modern equipment , no-compromise – for – quality values , full range of services , experience , and a sincere commitment to satisfying the requirement of our customers.

Quality product performance and good reputation, our products are not only successful sales in China, and have been exported to more than 120 countries and regions in the world, including: Germany, Japan, Italy, Russia, Japan, South Korea, Turkey, Brazil , India, the United Arab Emirates, Saudi Arabia and other countries, the products are subject to a great welcome and praise.

Our main goal is to conserve the environment through generating clean, sustainable and efficient energy in order to ensure a "greener future” for all mankind. We have the responsibility to increase awareness in renewable energy and assist households and business owners to Go Green and reduce their operational costs.

We attend SNEC in Shanghai every year to show our products to customers all around the world.
