    2.5 4.0 6.0mm Terminal Solar Cable Connectors For Photovoltaic System

    Ask Lasest Price
    Brand Name : Pntech
    Model Number : PV004
    Certification : TUV/CE/ISO9001
    Price : Negotiation
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 5000pairs per day
    Delivery Time : 3-10days
    • Product Details
    • Company Profile

    2.5 4.0 6.0mm Terminal Solar Cable Connectors For Photovoltaic System


    2.5 4.0 6.0mm Terminal Copper PV Module solar Connector For Photovoltaic System

    Connector Description:

    One wire is the DC positive (+) and the other is the DC negative (-). Generally, the female solar connector is associated with the positive lead and the male connector is associated with the negative lead.
    The male connector will snap directly into the female connector.

    1. Simple assembly, easy to use
    2. Suitable for different sizes of PV cable
    3. Waterproof grade: IP67
    4. Housing made of PC material, anti-UV
    5. High current carrying capacity
    6. Contact material: Copper Tin Plated
    7. High heat resistance, wear-resisting
    Contact presistance: <5mΩ
    Safety class: class II
    Waterproof grade: IP 65
    Temperature range:-40ºC~+85ºC
    Cable standard: 2.5/4/6mm2
    Flame retardant grade: UL94-V0
    Insulation material: PC
    Composite contact material: Copper, silver plating
    T-branch connector (TUV / CE approval)

    Assembly Instructions

    1. During self assembly, parts and tools other than those stated by R&X are used or if the preparation and assembly instructions described here are disregarded then neither safety nor compliance with the technical data can be guaranteed.
    2. For protection against electric shock, PV connectors must be isolated from the power supply while being assembled or disassembled.
    3. The end product must provide protection from electric shock.
    4. Unplugging under load: PV plug connections muct not be unplugged while under load. They can be placed in a no load state by switching off the DC/AC converter or breaking the AC circuit interrupter. Plugging and unplugging while under voltage is permitted.
    5. Disconnected connectors should be protected from dirt and water with sealing caps.
    6. Plugged parts are watertight IP67

    Product NameConnector
    Rated Current30A(2.5~6mm2)
    Rated Voltage1000V DC
    Test Voltage6000V(50HZ, 1min)
    Overvoltage category/Pollution degreeCAT III/2
    Contact resistence of plug connectors1 mΩ
    Conatct materialCopper, Ag plated
    Insulation materialPC
    Degree of protectionIP20/IP67
    Flame classUL94-V0
    Safety classII
    Suitable cable2.5-6mm2
    Insertion force/Withdrawal force≤50N/ ≥50N
    Connecting systemCrimp connection
    Temperature range-40ºC~+125ºC
    Packing unit1000pcs
    Minimum order quantity1000pcs
    Weight per Piece (excluding packing)25g
    Custom tariff number8536690000
    Country of originChina


    Advantage:

    • Simple,quick,safe and effective filed assembly
    • Develop independently,innovative design,have independent intellectual property rights,adaptive to connector directly
    • High mechanical endurance
    • High current and voltage carrying:30A,1000VDC
    • Low transition resistance
    • Innovative sealed,waterproof,dust resistance design:IP68
    • Excellent plastic material ,UL 94-V0,wide temperature range:-40°c to 90°c,weather and UV resistant for long-time outdoor application
    • Approved by TUV

    FAQ:

    1. When can I get the quotation?
    Within 24 hours of getting the inquiry, if you are very urgent to get the price, please call us to give complete specifications about the cable. price will be calculated soon.
    2. How long about the delivery?
    Usually within 3-4 working days after payment, mainly according to the quantity.
    3. What's your payment terms?
    We accept T/T (bank transfer), L/C
    4. Do you accept the customized order?
    Yes, we do.
    5. Do you offer OEM & ODM?
    Yes. OEM & ODM are available.

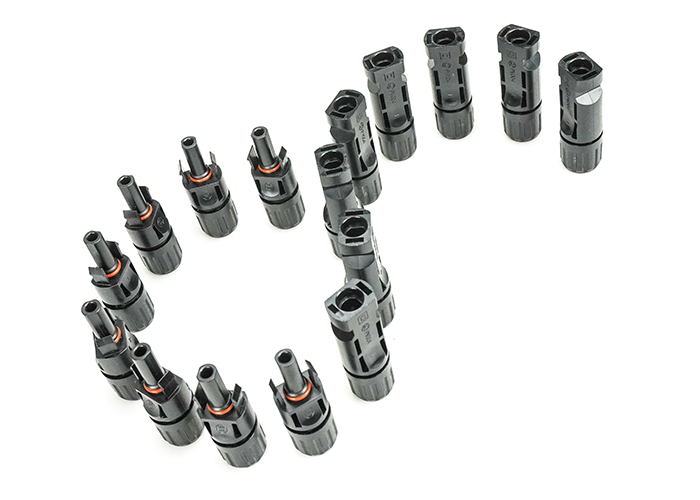

    Picture of solar connector
