Ce TUV IP67 2.5mm2 4.0mm2 6.0mm2 Male/Female DC 1000V Solar Cable
Connectors
Solar PV Connector, with TUV certified, has inner drum-type
material metal connectors, the plugs and minus connector are used
with the cable, made of PC material, easy to connector with each
other. It is important and indispensable components for
photoelectric system.
Easy to install Lightweight and compact, portable and easy to use;
Good material make sure the transmission in the stable situation
Solar Branch Connectors are used for parallel connection between
solar panels(PV modules).
SOLAR Y BRANCH CONNECTORS: 1 male to 2 female(M/FF) and 1 female to
2 male(F/MM), it is compatible
with solar connectors in 10AWG to 14AWG, it could be used for
connecting two solar panels in parallel.
WATERPROOF AND DURABLE: An IP67 waterproof ring on the male
connector is perfect that seal out water
and dust to prevent it from corrosion. The connector is stable and
safe with the built-in lock which is
durable outdoors.
| Type: connector PV004 |
| Electrical Features: |
| Rated Current | 25A(2.5/4mm2),30A(4/6mm2) |
| Withstanding Voltage | 1000V DC(TUV),600V(UL) |
| Contact Resistance | ≤0.3mΩ |
| Protection Class | Class II |
| Mechanical Features: |
| Temperature Range | -40 oC~+90oC |
| Protection Degree | IP2X,unmated;IP67,mated |
| Wire Size Range | 2.5/4/6mm2(14AWG,12AWG,10AWG) |
| Unmating Force | 200 Newton |
| Material Features: |
| Insulation Material | PC |
| Contact Material | Copper,Tin plated |
| Flame Class | UL94-V0 or UL94-5VA |
5 pairs solar panel connectors Male & Female + 5 pairs solar
connector pins (male & female) + 1 pair of spanners
Conductor pin is tinned Copper: It makes a rock solid connection
after you crimp the pin to the wire, and these are operated
perfectly under heavy load
WATERPROOF RING on connection is perfect to seal out water and dust
to prevent corrosion, PPO INSULATION MATERIAL with excellent aging
resistance and UV endurance, survived rain, high force winds and
snow for more than 20 years!
Compatible with PV cables with different insulation diameters
13-10AWG (2.5m㎡--6m㎡)
Quick & simple assembly processing and simple removal of plugs
without the aid of any extra instrument
Advantage:
• Simple,quick,safe and effective filed assembly
• Develop independently,innovative design,have independent
intellectual property rights,adaptive to connector directly
• High mechanical endurance
• High current and voltage carrying:30A,1000VDC
• Low transition resistance
• Innovative sealed,waterproof,dust resistance design:IP68
• Excellent plastic material ,UL 94-V0,wide temperature range:-40°c
to 90°c,weather and UV resistant for long-time outdoor application
• Approved by TUV
PV004 Photovoltaic Plug Connector
Plug connector and tools as a comprehensive solution package
Handling the plug connector is uncomplicated and intuitive: When
the cable insulation has been stripped away, the metal contact is
crimped and easily inserted into the plastic housing until you can
clearly hear and feel the locking mechanism. After this, you only
need to tighten the cable gland and the connection is fixed.

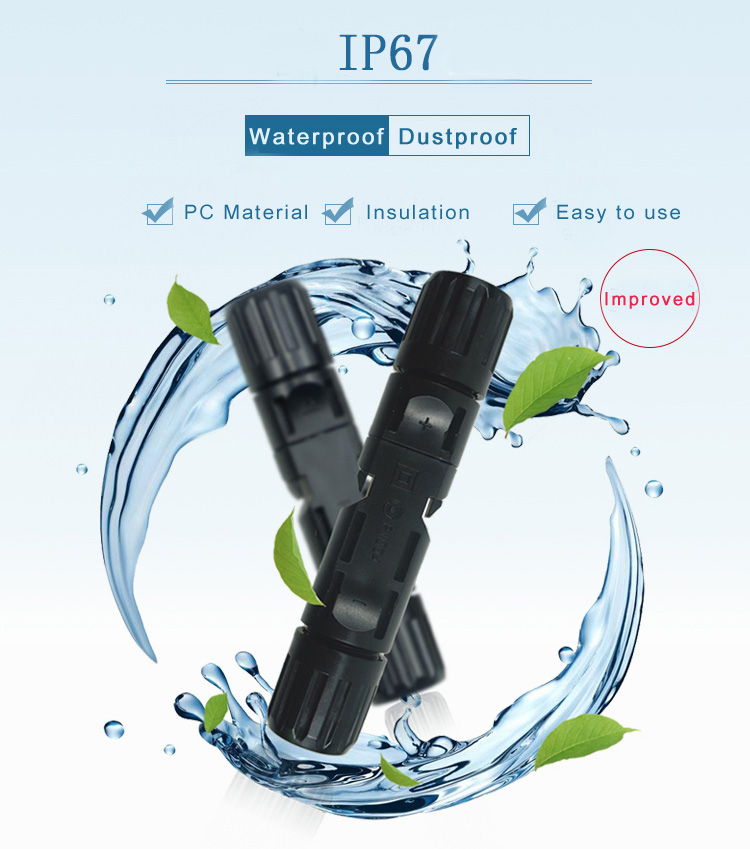

Picture of solar connector
