4mm2 black red wire Branch Connector Y Branch Connector with 1500V
fuse 20A
Description:
- One end is (male and female solar cable connectors), the other
end is DC 4mm2 (Outer diameter 5.9mm, inner diameter 2.1mm).
- female/male connectors allow the cable to be connected to PV
panels and generator quickly.
- Waterproof and durable enough to withstand high & low temperature
environment.
- Provide solid and stable connection between solar panel and solar
generator, and compatible for all solar panel kits with connector.
- Simple assembling process and easy to be removed without using
any extra tools.
| Product Name: | Y branch connector |
| Cable length: | 35cm |
| Working current: | 20A(4mm2), 30A(6mm2) |
| Withstand voltage: | DC1500V |
| Contacting resistance: | <2 mΩ |
| Insulation resistance: | > 500MΩ |
| Suitable single core cable section: | 2.5mm2, 4mm2, 6mm2 |
| Cable outer diameter: | Φ5mm -Φ 7mm |
| Ambient temperature: | -40 C~ + 105 C |
| Protection class: | IP67 |
| Safety class: | II |
| Shell material: | PPO |
| Contacting material: | copper, tin plated |
| Terminal connecting method: | pressure welding |
| Fuse | 10A,15A,20A,25A |
Advantage:
1. low power loss
2. solarconnector for solar power system
3. allthe connection made by double fixed connection
4. withthe capacity of anti-aging and resistance to ultraviolet
radiation on the outcover
5. withconvenient installation, strong commonality
6. to meet the using requirement under bad outdoor condition
Assembly Instructions
1. During self assembly, parts and tools other than those stated by
R&X are used or if the preparation and assembly instructions
described here are disregarded then neither safety nor compliance
with the technical data can be guaranteed.
2. For protection against electric shock, PV connectors must be
isolated from the power supply while being assembled or
disassembled.
3. The end product must provide protection from electric shock.
4. Unplugging under load: PV plug connections muct not be unplugged
while under load. They can be placed in a no load state by
switching off the DC/AC converter or breaking the AC circuit
interrupter. Plugging and unplugging while under voltage is
permitted.
5. Disconnected connectors should be protected from dirt and water
with sealing caps.
6. Plugged parts are watertight IP67
FAQ:
1. When can I get the quotation?
Within 24 hours of getting the inquiry, if you are very urgent to
get the price, please call us to give complete specifications about
the cable. price will be calculated soon.
2. How long about the delivery?
Usually within 3-4 working days after payment, mainly according to
the quantity.
3. What's your payment terms?
We accept T/T (bank transfer), L/C
4. Do you accept the customized order?
Yes, we do.
5. Do you offer OEM & ODM?
Yes. OEM & ODM are available.

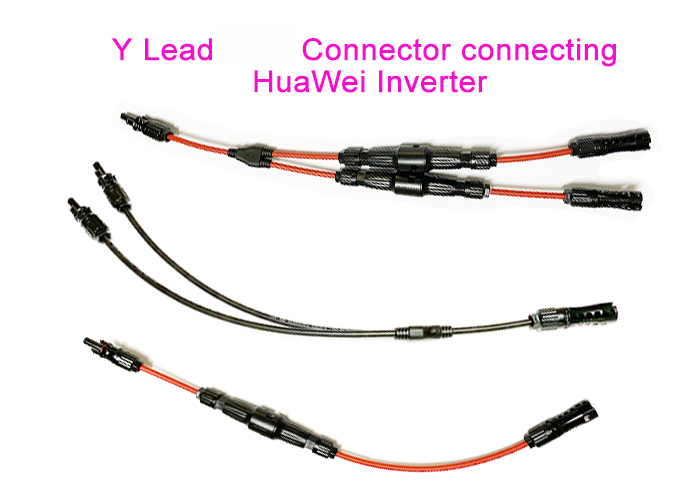

Picture of Y branch connector
