63kg/Km Weight for Indoor / Outdoor ISO9001 / TUV Power Station DC Solar Cable

Flexible cables suitable for mobile and fixed installation; Suitable for connection between photovoltaic panels, and photovoltaic panels to the AC inverter; Suitable for indoor and outdoor use.
The materials used in the construction of these cables exceed the thermal endurance test specified in the standard EN 60216 for +120 ºC (temperature index). Compliance with this test provides that, with proper installation, operation and maintenance, the estimated life of the cable is 30 years at 90 °C.

Product description

PV Photovoltaic Cable DC Solar Power CableTechnical Character:
Working voltage:AC: 600/1000V DC: 900/1800V
Maxium Voltage:1.8KV
Test Voltage: 6.5kV AC
Working Temperature:-40-90 o C
Bending Radiu:
Fixed: 4 x overall diameter
Flexed: 5 x overall diameter
Max. Conductor temperature: 120o C
Short-circuit max. Conductor temperature:250°C
Insulation resistance: 10 MΩ x km

Technical Data

Conductor : Stranded tinned copper
Refer to IEC 60228 class 5
Inner Insulation: XLPE
Outer Jacket: XLPE
Colour: Black and Red

Application :

Applied to solar panels for power generation and related components of the wiring, connection,particularly suitable for outdoor. Resistance to sunlight, anti-aging, Using the low smoke halogen-free flame retardant materials, higher grade, more safety.

(We also produce single core of 2.5mm2, 6mm2, 10mm2 and 16mm2, as well as dual cores,
please consult me directly if necessary)

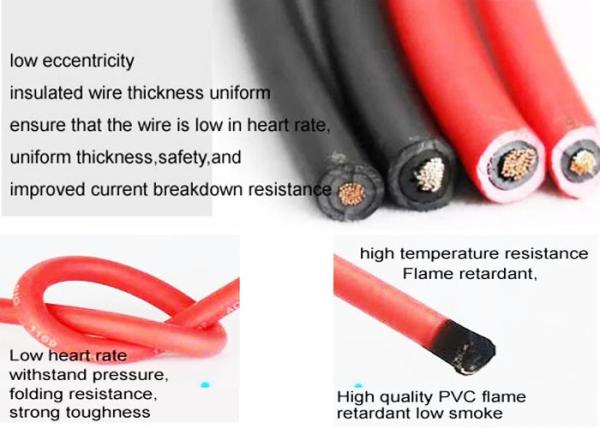

Picture of 4mm DC solar cable

ZHEJIANG PNTECH TECHNOLOGY CO. LTD.

It was founded in 2011 and has 10 years of experience in photovoltaic cable production. The company has passed ISO9001 management system certification. The photovoltaic cable series has passed the German TUV and China CQC certification. Certificate covers 1.5sqmm-25sqmm. Our product is produced by special photovoltaic materials, using advanced electron beam irradiation cross-linking technic. Our product can be used for a long time in an environment of minus 40 degrees, and with strong UV resistance. Main Products: Photovoltaic cables, Photovoltaic connectors,PV Junction Box, Solar PV connectors, solar photovoltaic Controllers, PV inverters for solar energy, photovoltaic systems, batteries, etc.

Due to our high quality and good service, our products have been exported to all over the world such as UK, USA, Mexico, Germany, France, Poland, Netherland, Sweden, France, Portugal, Spain, Italy, Australia, Singapore, Malaysia, Thailand, etc.And our products are approved by TUV, CE and ISO9001.

How are we doing it is Skilled , long –term employee , satisfied customers , modern equipment , no-compromise – for – quality values , full range of services , experience , and a sincere commitment to satisfying the requirement of our customers.

Quality product performance and good reputation, our products are not only successful sales in China, and have been exported to more than 120 countries and regions in the world, including: Germany, Japan, Italy, Russia, Japan, South Korea, Turkey, Brazil , India, the United Arab Emirates, Saudi Arabia and other countries, the products are subject to a great welcome and praise.

Our main goal is to conserve the environment through generating clean, sustainable and efficient energy in order to ensure a "greener future” for all mankind. We have the responsibility to increase awareness in renewable energy and assist households and business owners to Go Green and reduce their operational costs.

We attend SNEC in Shanghai every year to show our products to customers all around the world.
