Double Insulated 2 Core Solar Cable 4mm TUV approved Fire Resistant
Performance
Cables Description:
Cable made of electron-beam cross-linked insulation and coating;
high resistance against heat , cold, oil, abrasion, ozone, UV and
weather; with improved reaction in case of fire . low smoke,
halogen free , flame free , flame retardant; flexible, easy to
strip, very low space requirement, extremely, extremely
mechanically robust, very long lifetime.
| TYPE:TWIN CORE SOALR CABLE | PART NO:PV1-F 2X4.0mm2 |
| CONSTRUCTION: |
| CONDUCTOR | MATERIAL | Tinned copper |
| CONSTRUCTION | 56/0.3mm |
| RESISTANCE | 5.09 Ω/km (MAX. at 20℃) |
| INSULATION | MATERIAL | XLPE |
| DIAMETER | 2.0±0.1 mm |
| THICKNESS | 0.6±0.10 mm |
| COLOUR | Black |
| JACKET | MATERIAL | XLPE |
| DIAMETER | 13 X 6mm |
| THICKNESS | 0.6±0.10 mm |
| COLOUR | Black |
| Electrical Data | Rated Rating | AC 0.6/1KV DC1800V |
| Rated temperature | -40 ～＋90,Dry and Wet |
| 60℃ rated current | 70A |
| Test voltage | 3.0KV AC |
| Weathering Resistance | Sun Res. |
| MARKING | TüV 2 PfG 1169 PV1-F 2×4.0mm2 TÜV SÜD approved VDE-AR-E
2283-4:2011-10 |
Advantage:
1. 99.9% high-purity oxygen-free copper: high quality tin-plated
copper, high purity, anti-aging, high electrical conductivity, low
loss, strong current carrying capacity, high corrosion resistance,
and can adapt to outdoor harsh environment.
2, low eccentricity: thickness uniformity, effectively prevent the
current breakdown fire, to ensure safety.
3. Double protection: The solar photovoltaic cable adopts
insulation and Jacket double protection structure to extend the
service life of the cable.
4, high-performance polymer materials: Insulating and jacket all
use environmentally friendly low-smoke halogen-free flame-retardant
cross-linked polyolefin materials, with wear-resistant, high
temperature, oil, ozone, UV, high flame retardant properties.
5, strong flexibility: cable has a pressure, bending, strong
toughness.
6, long service life: normal outdoor use, service life> 25 years
7, advanced equipment: The company has advanced foreign production,
scientific research equipment, passed the ISO9001-2008 quality
management system certification, IATF16949: 2016 quality management
system certification.
| Name | PV Cable |
| The product description | Widely used in indoor and outdoor solar installations, electrical
installation, indoor and outdoor, explosion-prone areas, factories,
industrial and agricultural industries. |
| Product features | Low smoke without halogen, good cold, ultraviolet, ozone -
resistant and weather - resistant. |
| Flame retardant, cutting resistance and penetration resistance. |
| Cable protection level Ⅱ level. |
| With 150 ℃ photovoltaic cable radiation as insulation materials,
halogen free flame retardant is halogen-free, non-toxic modified
polyethylene thin hengjing resin as the main raw material, add
halogen-free, non-toxic, flame retardant, heat stabilizer,
eliminate smoke agent, preservative, such as fertilizer, does not
contain halogen, heavy metals, phosphorus. |
| It conforms to ROHS, and the insulation resistance is small after
immersion. |
| Electrical | 1. The dc resistance: the finished cable at 20 ℃ conductive wire
core dc resistance is not greater than 5.09 Ω/km |
| 2. The insulation resistance: the finished insulation resistance of
cable at 20 ℃ should not less than 1014 Ω. Cm, finished cable
insulation resistance at 90 ℃ is not less than 1011 Ω. Cm |
| 3. The sheath surface resistance: resistance of the finished cable
sheath surface should be not less than 109 Ω. |
| Cable structure | Conductor: tinned copper wire 2.5, 4, 6, 10, 16 mm ^ 2 PV1 - F |
| 18, 16 and 14, 12, 10, 8, 6, 4, 2 mm ^ 2 PV wire |
| Insulation: > 0.5mm thick with low smoke and halogen material,
and meet the specified limit of the customer. |
| Sheath: low smoke and halogen free material thickness > 0.5mm. |
| Detailed parameters | Ambient temperature: - 40 ℃ ~ + 90 ℃ |
| The highest temperature of conductor: 120 ℃ (allow 5 s in short
circuit temperature 200 ℃) |
| Limited voltage: AC0.6/1kv dc1.8kv. |
FAQ:
1. When can I get the quotation?
Within 24 hours of getting the inquiry, if you are very urgent to
get the price, please call us to give complete specifications about
the cable. price will be calculated soon.
2. How long about the delivery?
Usually within 3-4 working days after payment, mainly according to
the quantity.
3. What's your payment terms?
We accept T/T (bank transfer), L/C
4. Do you accept the customized order?
Yes, we do.
5. Do you offer OEM & ODM?
Yes. OEM & ODM are available.

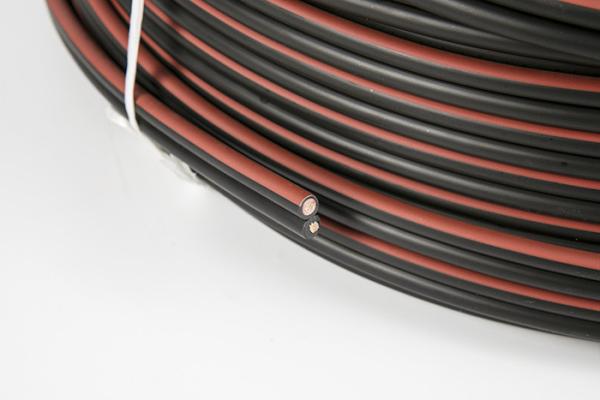

Picture of solar cable 4mm
