2 to 1 Solar Y Branch Connector with PPO waterproof IP67 CE certification

Description:

Contact presistance: <5mΩ
Safety class: class II
Waterproof grade: IP 67
Temperature range:-40ºC~+85ºC
Cable standard: 2.5/4/6mm2
Flame retardant grade: UL94-V0
Insulation material: PC
Composite contact material: Copper, silver plating
Y-branch connector (CE approval)

Advantage:

1. low power loss

2. solarconnector for solar power system

3. allthe connection made by double fixed connection

4. withthe capacity of anti-aging and resistance to ultraviolet radiation on the outcover

5. withconvenient installation, strong commonality

6. to meet the using requirement under bad outdoor condition

Assembly Instructions

1. During self assembly, parts and tools other than those stated by R&X are used or if the preparation and assembly instructions described here are disregarded then neither safety nor compliance with the technical data can be guaranteed.

2. For protection against electric shock, PV connectors must be isolated from the power supply while being assembled or disassembled.

3. The end product must provide protection from electric shock.

4. Unplugging under load: PV plug connections muct not be unplugged while under load. They can be placed in a no load state by switching off the DC/AC converter or breaking the AC circuit interrupter. Plugging and unplugging while under voltage is permitted.

5. Disconnected connectors should be protected from dirt and water with sealing caps.

6. Plugged parts are watertight IP67

FAQ:

1. When can I get the quotation?

Within 24 hours of getting the inquiry, if you are very urgent to get the price, please call us to give complete specifications about the cable. price will be calculated soon.

2. How long about the delivery?

Usually within 3-4 working days after payment, mainly according to the quantity.

3. What's your payment terms?

We accept T/T (bank transfer), L/C

4. Do you accept the customized order?

Yes, we do.

5. Do you offer OEM & ODM?

Yes. OEM & ODM are available.

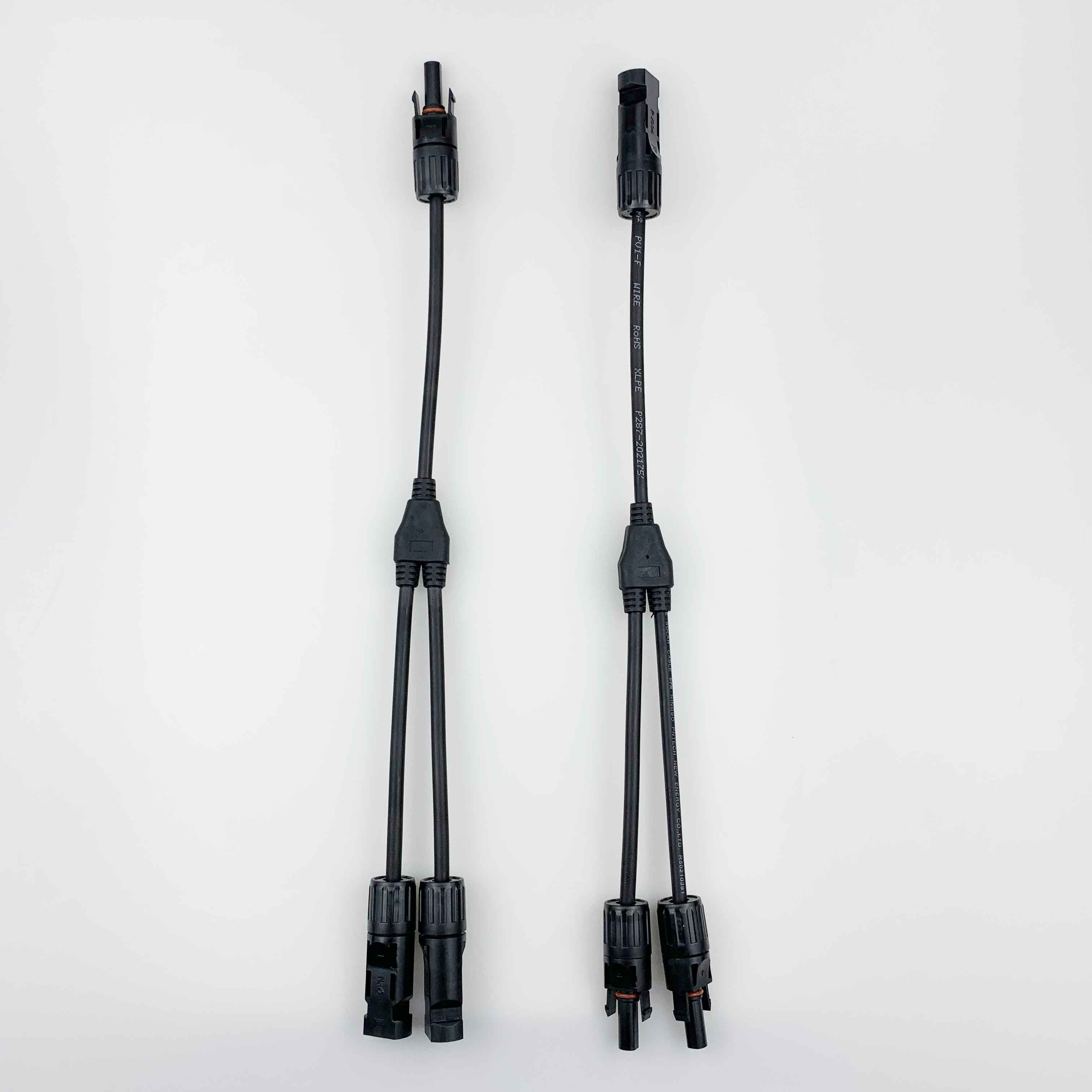

Picture of solar Y branch connector

ZHEJIANG PNTECH TECHNOLOGY CO. LTD.

It was founded in 2011 and has 10 years of experience in photovoltaic cable production. The company has passed ISO9001 management system certification. The photovoltaic cable series has passed the German TUV and China CQC certification. Certificate covers 1.5sqmm-25sqmm. Our product is produced by special photovoltaic materials, using advanced electron beam irradiation cross-linking technic. Our product can be used for a long time in an environment of minus 40 degrees, and with strong UV resistance. Main Products: Photovoltaic cables, Photovoltaic connectors,PV Junction Box, Solar PV connectors, solar photovoltaic Controllers, PV inverters for solar energy, photovoltaic systems, batteries, etc.

Due to our high quality and good service, our products have been exported to all over the world such as UK, USA, Mexico, Germany, France, Poland, Netherland, Sweden, France, Portugal, Spain, Italy, Australia, Singapore, Malaysia, Thailand, etc.And our products are approved by TUV, CE and ISO9001.

How are we doing it is Skilled , long –term employee , satisfied customers , modern equipment , no-compromise – for – quality values , full range of services , experience , and a sincere commitment to satisfying the requirement of our customers.

Quality product performance and good reputation, our products are not only successful sales in China, and have been exported to more than 120 countries and regions in the world, including: Germany, Japan, Italy, Russia, Japan, South Korea, Turkey, Brazil , India, the United Arab Emirates, Saudi Arabia and other countries, the products are subject to a great welcome and praise.

Our main goal is to conserve the environment through generating clean, sustainable and efficient energy in order to ensure a "greener future” for all mankind. We have the responsibility to increase awareness in renewable energy and assist households and business owners to Go Green and reduce their operational costs.

We attend SNEC in Shanghai every year to show our products to customers all around the world.
