    Dustproof Multi Contact Solar Cable Connectors MC4 TUV 1000V 30A

    Ask Lasest Price
    Brand Name : Pntech
    Model Number : PV004-EN
    Certification : TUV/CE/ISO9001
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 5000pairs per day
    Delivery Time : 3-10days
    • Product Details
    • Company Profile

    Dustproof Multi Contact Solar Cable Connectors MC4 TUV 1000V 30A

    Dustproof Tuv 1000V 30A IP67 Multi Contact Solar Cable Connector comply with MC4



    Applied to solar panels for power generation and related components of the wiring, connection,particularly suitable for outdoor . Resistance to sunlight, anti-aging , Using the low smoke halogen-free flame retardant materials, higher grade, more safety .
    Multi Contact 4 Solar Cable Connector 1000V 30A is used to connect solar panel and Inverter in Solar power station. MC4 Connector is compatible with Multic Contact ,Amphenol H4 and other types MC4, and suitable to solar cable, 2.5mm, 4mm and 6mm. Solar Connector Advantage is quickly and reliable connection,UV resistance and IP67 waterproof with 25years life warranty.
    Solar connector is most used in solar photovoltaic power generation system of a special connector, the connector (compatible with MC4 connector) is a solar pv panels in series with a parallel array module when the special connector, reliable connection rapidly, waterproof and dustproof, easy to use etc, shell has strong anti-aging, uv resistant ability, the cable connection adopts the hoops and clamping method connection, male and female head fixed with stable self-locking mechanism, open and close freely.It is an important component of solar power system.Product scientific structure, selected materials, to ensure that all mechanical and electrical properties are good.
    It is recommended to use wire clamp to press the line, wiring method and order, if there is no wire clamp can also use iron clamp to press the line (preferably soldering tin).
    Solar PV Connector, with TUV certified, has inner drum-type material metal connectors, the plugs and minus connector are used with the cable, made of PC material, easy to connector with each other. It is important and indispensable components for photoelectric system.

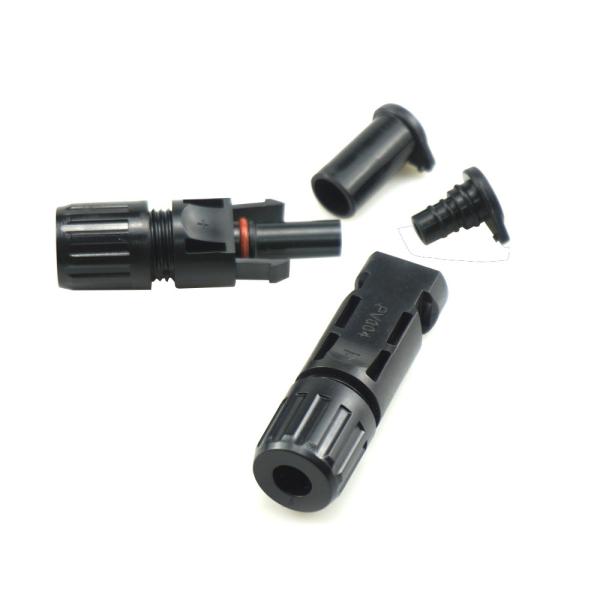

    Picture of MC4 Solar Cable Connectors

    Type: connector PV004-EN
    Electrical Features:
    Rated Current25A(2.5/4mm2),30A(4/6mm2)
    Withstanding Voltage1000V DC(TUV),600V(UL)
    Contact Resistance≤0.3mΩ
    Protection ClassClass II
    Mechanical Features:
    Temperature Range-40 oC~+90oC
    Protection DegreeIP2X,unmated;IP67,mated
    Wire Size Range2.5/4/6mm2(14AWG,12AWG,10AWG)
    Unmating Force200 Newton
    Material Features:
    Insulation MaterialPC
    Contact MaterialCopper,Tin plated
    Flame ClassUL94-V0 or UL94-5VA


    Advantage

    • Simple,quick,safe and effective filed assembly
    • Develop independently,innovative design,have independent intellectual property rights,adaptive to connector directly
    • High mechanical endurance
    • High current and voltage carrying:30A,1000VDC
    • Low transition resistance
    • Innovative sealed,waterproof,dust resistance design:IP68
    • Excellent plastic material ,UL 94-V0,wide temperature range:-40°c to 90°c,weather and UV resistant for long-time outdoor application
    • Approved by TUV

    FAQ:

    1. When can I get the quotation?
    Within 24 hours of getting the inquiry, if you are very urgent to get the price, please call us to give complete specifications about the connector. price will be calculated soon.
    2. How long about the delivery?
    Usually within 3-4 working days after payment, mainly according to the quantity.
    3. What's your payment terms?
    We accept T/T (bank transfer), L/C
    4. Do you accept the customized order?
    Yes, we do.
    5. Do you offer OEM & ODM?
    Yes. OEM & ODM are available.
