Product Description:

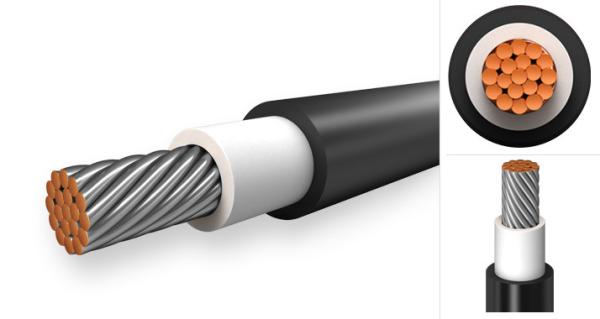

Solar PV Cable is a photovoltaic energy cable specifically designed
for solar power applications. With tinned copper as its conductor
material, the cable is available in black and red colors, and comes
in a variety of packaging types and sizes, including 100m/roll,
500m/roll, 500m/drum, and 1000m/drum. The insulation material is
XLPO, and the cable has a voltage rating of 1500V, making it
perfect for photovoltaic solar systems. Photovoltaic Solar Cable
has become a popular choice for solar power installations due to
its durability, efficiency, and cost-effectiveness. As a reliable
and cost-effective tinned copper conductor material, it is perfect
for photovoltaic energy systems and solar voltage cables.
Features:
- Product Name: Solar PV Cable
- Temperature Rating: -40℃-90℃
- Size: 2.5/4/6/10/16/25mm2
- Outer Sheath Color: Black/Red
- Number of Cores: 1
- Packaging: 100m/roll, 500m/roll, 500m/drum,1000m/drum
- Keywords: Photovoltaic Voltage Cable, Solar Energy Cable, Solar Energy Cable
Technical Parameters:
| Property | Value |
|---|
| Application | Solar Mounting System |
| Number of Cores | 1 |
| Outer Sheath Material | XLPO |
| Insulation Material | XLPO |
| Voltage Rating | 1500V |
| Conductor Material | Tinned Copper |
| Size | 2.5/4/6/10/16/25mm2 |
| Cable Type | Solar Voltage Cable, Solar Powered Cable, Solar Energy Cable |
| Length | 100m |
| Color | Black/Red |
Applications:
Solar PV Cable is a photovoltaic energy cable manufactured by
PNTECH, with model number H1Z2Z2-K. This cable is made of XLPO as
its outer sheath material, and it is available in black or red
color. This cable is TUV & CE & ISO9001 & CQC & CPR & BCA
certified, and has a voltage rating of 1500V. It is suitable for
photovoltaic solar energy systems, and it is available in
2.5/4/6/10/16/25mm2 sizes. The minimum order quantity of this cable
is 500, and it is packed in 100m/roll. The payment terms are T/T,
L/C at sight. PNTECH can provide 10000000 of this cable, and the
delivery time is 7-25days.
Solar PV Cable is perfect for all kinds of photovoltaic
applications, including solar farms, residential and commercial
installations. It is designed to guarantee the highest safety
standards and maximum resistance to UV radiation, ozone, moisture,
fire, oils, acids, alkalis, and solvents. It is flame retardant,
halogen-free, and low smoke. Solar PV Cable is highly flexible,
making it perfect for installation in tight spaces. It is
environmentally friendly and energy efficient. With this cable, you
can rest assured that your photovoltaic energy systems will be safe
and reliable.
Customization:
Solar PV Cable
- Brand Name: PNTECH
- Model Number: H1Z2Z2-K
- Place of Origin: CHINA
- Certification: TUV & CE & ISO9001 & CQC & CPR & BCA
- Minimum Order Quantity: 500
- Price: Negotiation
- Packaging Details: 100m/roll
- Delivery Time: 7-25days
- Payment Terms: T/T, L/C at sight
- Supply Ability: 10000000
- Color: Black/Red
- Outer Sheath Material: XLPO
- Temperature Rating: -40℃-90℃
- Size: 2.5/4/6/10/16/25mm2
- Application: Solar Mounting System
Keywords: Solar Voltage Cable, Solar Photovoltaic Cable, Solar
Panel Cable, Solar PV Cable
Support and Services:
Solar PV Cable Technical Support and Services
- Provide technical advice on the selection and installation of solar
PV cables
- Provide technical training on the installation of solar PV cables
- Provide technical support in the event of any issues with the solar
PV cables
- Provide quality assurance for the solar PV cables
- Offer a warranty on all solar PV cables
- Provide regular maintenance and inspection services for solar PV
cables
Packing and Shipping:
Solar PV Cable Packaging and Shipping
Solar PV cables should be packaged in a way that will protect them
from the environment and ensure they are not damaged in transit. It
is important to use a box or bag that is strong enough to protect
the cables from any potential impacts. The cables should also be
wrapped in bubble wrap or padded material to provide additional
cushioning and protection. Once the cables are properly packaged,
they should be labeled with the size and type of product, the
origin, and the destination. Finally, the package should be sealed
securely with tape and labeled with the customer's address.
FAQ:
- Q: What is the Brand Name of Solar PV Cable?
- A: The Brand Name of Solar PV Cable is PNTECH.
- Q: What is the Model Number of Solar PV Cable?
- A: The Model Number of Solar PV Cable is H1Z2Z2-K.
- Q: Where is the Solar PV Cable from?
- A: The Solar PV Cable is from CHINA.
- Q: What is the Certification of Solar PV Cable?
- A: The Certification of Solar PV Cable is TUV & CE & ISO9001 & CQC
& CPR & BCA.
- Q: What is the Minimum Order Quantity of Solar PV Cable?
- A: The Minimum Order Quantity of Solar PV Cable is 500.
