    TUV CE certificated DC single core PV1-F 6mm2 solar pv cable for solar panel

    Ask Lasest Price
    Brand Name : Pntech
    Model Number : PV1-F1x 6mm2
    Certification : ISO9001/TUV/CE
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 70000m per day
    Delivery Time : 3-10days
    • Product Details
    • Company Profile

    TUV CE certificated DC single core PV1-F 6mm2 solar pv cable for solar panel


    TUV CE certificated DC single core PV1-F 6mm2 solar pv cable for solar panel


    Specificate


    Cable made of electron-beam cross-linked insulation and coating; high resistance against heat , cold, oil, abrasion, ozone, UV and weather; with improved reaction in case of fire . low smoke, halogen free , flame free , flame retardant; flexible, easy to strip, very low space requirement, extremely, extremely mechanically robust, very long lifetime.


    SizeCross SectionConductor StructureOuter DiameterMax. DCRatedRated
    Resistance at 20℃VoltageCurrent
    mm²mmmmΩ/kmV DCA
    1 x 2.5mm²2.5mm²49 x ∅0.255.48.061000/150030A
    1 x 4.0mm²4.0mm²56 x ∅0.2856.14.971000/150050A
    1 x 6.0mm²6.0mm²84 x ∅0.307.13.521000/150070A
    1 x 10.0mm²10.0mm²80 x ∅0.408.52.121000/150095A

    Application :


    Specifically designed for connecting photovoltaic system components inside and
    outside of building and equipment with high mechanical requirements and extreme weather
    conditions .For permanent installations.


    NamePV Cable
    The product descriptionWidely used in indoor and outdoor solar installations, electrical installation, indoor and outdoor, explosion-prone areas, factories, industrial and agricultural industries.
    Product featuresLow smoke without halogen, good cold, ultraviolet, ozone - resistant and weather - resistant.
    Flame retardant, cutting resistance and penetration resistance.
    Cable protection level Ⅱ level.
    With 150 ℃ photovoltaic cable radiation as insulation materials, halogen free flame retardant is halogen-free, non-toxic modified polyethylene thin hengjing resin as the main raw material, add halogen-free, non-toxic, flame retardant, heat stabilizer, eliminate smoke agent, preservative, such as fertilizer, does not contain halogen, heavy metals, phosphorus.
    It conforms to ROHS, and the insulation resistance is small after immersion.
    Electrical1. The dc resistance: the finished cable at 20 ℃ conductive wire core dc resistance is not greater than 5.09 Ω/km
    2. The insulation resistance: the finished insulation resistance of cable at 20 ℃ should not less than 1014 Ω. Cm, finished cable insulation resistance at 90 ℃ is not less than 1011 Ω. Cm
    3. The sheath surface resistance: resistance of the finished cable sheath surface should be not less than 109 Ω.
    Cable structureConductor: tinned copper wire 2.5, 4,6,10,16 mm2 PV1 - F
    25,16 and 10, 6,4,2.5 mm2 PV wire
    Insulation: > 0.5mm thick with low smoke and halogen material, and meet the specified limit of the customer.
    Sheath: low smoke and halogen free material thickness > 0.5mm.
    Detailed parametersAmbient temperature: - 40 ℃ ~ + 90 ℃
    The highest temperature of conductor: 120 ℃ (allow 5 s in short circuit temperature 200 ℃)
    Limited voltage: AC0.6/1kv dc1.8kv.


    (We also produce single core of 2.5mm2, 6mm2, 10mm2 and 16mm2, as well as dual cores,
    please consult me directly if necessary)

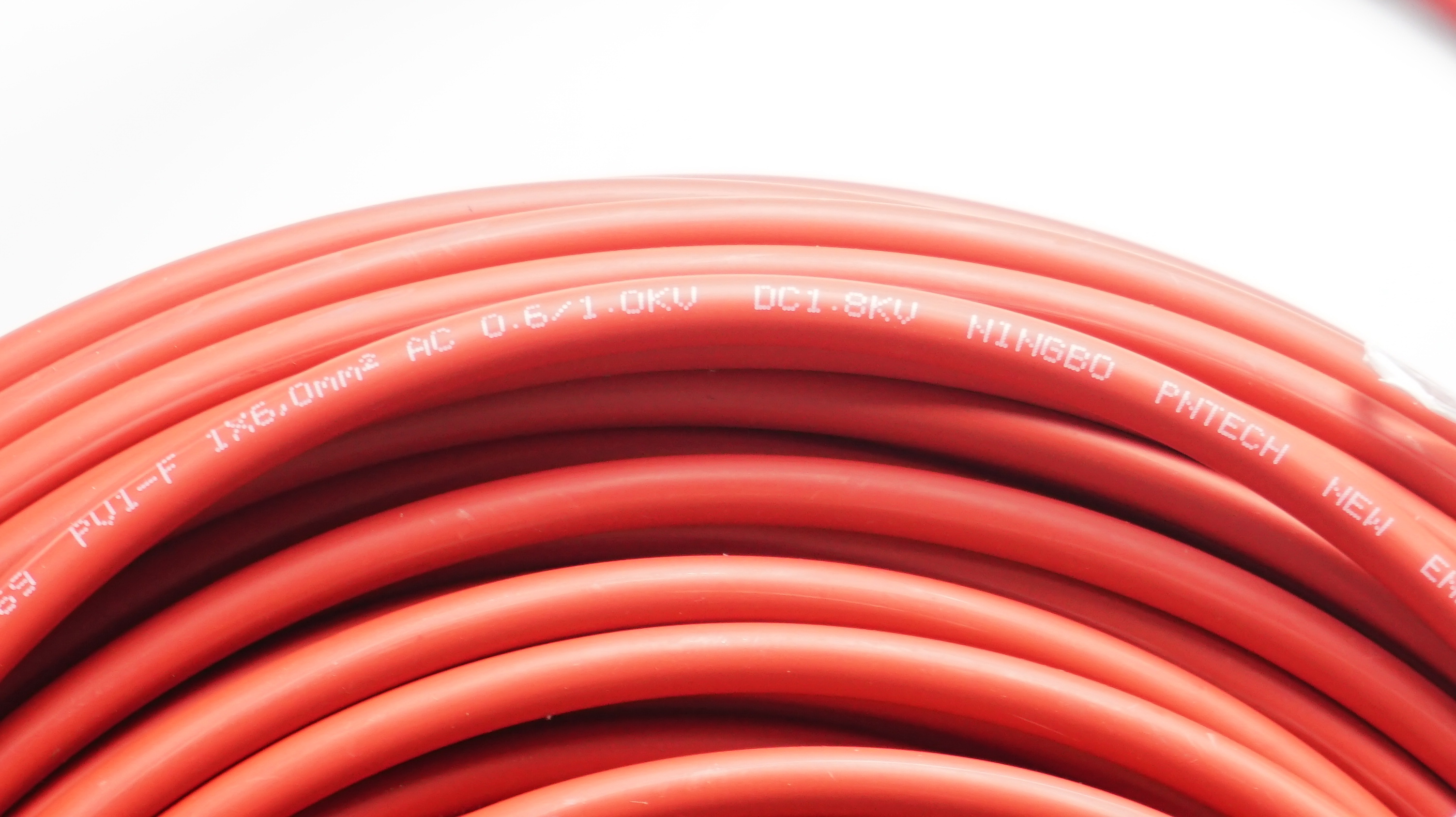

    Picture of DC solar PV cable 6mm2
