H1Z2Z2-K 4mm solar pv cable XLPE dual insulated TUV EN50618 for solar system

PV Photovoltaic Cable DC Solar Power Cable Standards

DIN EN 50618
Fire-resistance performance: IEC 60332-1
Low smoke emission : EN/IEC 61034-2
Halogen free according to EN 50525-1, Annex B
Low corrosivity of gases according to EN 50267-2-2, IEC 60754-2
PV Photovoltaic Cable DC Solar Power CableTechnical Character:
Working voltage:AC: 600/1000V DC: 900/1800V
Maxium Voltage:1.8KV
Test Voltage: 6.5kV AC
Working Temperature:-40-90 o C
Bending Radiu:
Fixed: 4 x overall diameter
Flexed: 5 x overall diameter
Max. Conductor temperature: 120o C
Short-circuit max. Conductor temperature:250°C
Insulation resistance: 10 MΩ x km

1. Construction: Tinned cooper, XLPE insulation, XLPE outer sheath.
2. Test Voltage: 6500V, 5min; rated voltage:1000/1800V DC.
3. Halogen free and low smoke, Rohs standard.
4. UV resistance.
5. Temperature rating:-40°C to 125°C, cold resistance.
6. TUV certification, TUV2Pfg1169-1.
7. Power cable for photovoltaic system.

Applications

Single conductor, sunlight-resistant, photovoltaic wire rated 90°C wet or 105°C dry 2000V for interconnection wiring of grounded and ungrounded photovoltaic power systems as described in Section 690.31(A) and other applicable parts of the National Electrical Code (NEC), NFPA 70

Options:

Colored phase ID stripes available on request
Multi-plexing available on request

Features:

Rated 90°C wet and dry
Deformation-resistant at high temperatures
Excellent moisture resistance,
Stable electrical properties over a broad temperature range
Excellent resistance to crush and compression cuts
Resistant to most oils and chemicals
UV/sunlight-resistant
Meets cold bend test at -40°C

(We also produce single core of 2.5mm2, 6mm2, 10mm2 and 16mm2, as well as dual cores,
please consult me directly if necessary)

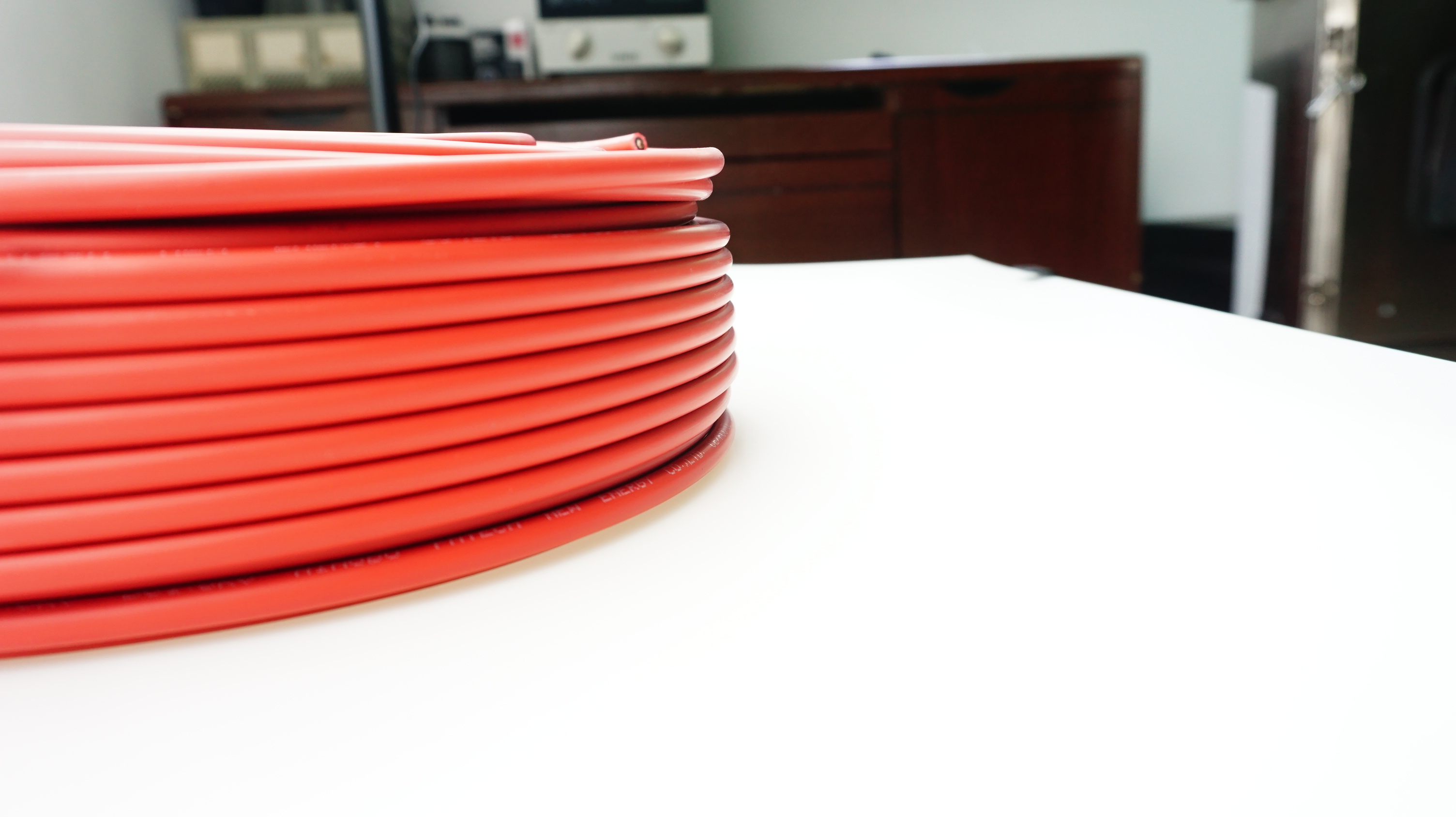

Pictures of 4mm Solar PV Cable

ZHEJIANG PNTECH TECHNOLOGY CO. LTD.

It was founded in 2011 and has 10 years of experience in photovoltaic cable production. The company has passed ISO9001 management system certification. The photovoltaic cable series has passed the German TUV and China CQC certification. Certificate covers 1.5sqmm-25sqmm. Our product is produced by special photovoltaic materials, using advanced electron beam irradiation cross-linking technic. Our product can be used for a long time in an environment of minus 40 degrees, and with strong UV resistance. Main Products: Photovoltaic cables, Photovoltaic connectors,PV Junction Box, Solar PV connectors, solar photovoltaic Controllers, PV inverters for solar energy, photovoltaic systems, batteries, etc.

Due to our high quality and good service, our products have been exported to all over the world such as UK, USA, Mexico, Germany, France, Poland, Netherland, Sweden, France, Portugal, Spain, Italy, Australia, Singapore, Malaysia, Thailand, etc.And our products are approved by TUV, CE and ISO9001.

How are we doing it is Skilled , long –term employee , satisfied customers , modern equipment , no-compromise – for – quality values , full range of services , experience , and a sincere commitment to satisfying the requirement of our customers.

Quality product performance and good reputation, our products are not only successful sales in China, and have been exported to more than 120 countries and regions in the world, including: Germany, Japan, Italy, Russia, Japan, South Korea, Turkey, Brazil , India, the United Arab Emirates, Saudi Arabia and other countries, the products are subject to a great welcome and praise.

Our main goal is to conserve the environment through generating clean, sustainable and efficient energy in order to ensure a "greener future” for all mankind. We have the responsibility to increase awareness in renewable energy and assist households and business owners to Go Green and reduce their operational costs.

We attend SNEC in Shanghai every year to show our products to customers all around the world.
