TUV approved 2PfG 1169 PV1-F 1x4mm2 XLPE insulate DC solar cable tinned copper

PV1-F tinned copper pv 4mm2 dc solar cable

1. Construction: Tinned cooper, XLPE insulation, XLPE outer sheath.
2. Test Voltage: 6500V, 5min; rated voltage:1000/1800V DC.
3. Halogen free and low smoke, Rohs standard.
4. UV resistance.
5. Temperature rating:-40°C to 125°C, cold resistance.
6. TUV certification, TUV2Pfg1169.
7. Power cable for photovoltaic system.

Fire Resistant Cables Description:

A. Application:Double insulation,electron-beam cross linked cables for photovotaic power station.

Construction:Tinned copper,according toVDE0295/IEC60228,Class5

B. Material Properties/Standards:

1. Fire-resistant performance:IEC60332-1.

2. Smoke emission:IEC61034;EN50268-2

3. Low fire load:DIN51900

4. Approvals:TUV2PfG 1169/08.2007 PV1-F.

5. Application Standards:UNE211 23;UNE20.460-5-52, UTE C 32-502

Application :

Applied to solar panels for power generation and related components of the wiring, connection,particularly suitable for outdoor . Resistance to sunlight, anti-aging , Using the low smoke halogen-free flame retardant materials, higher grade, more safety .

(We also produce single core of 2.5mm2, 6mm2 10mm2 and 16mm2, as well as dual cores,

please consult me directly if necessary)

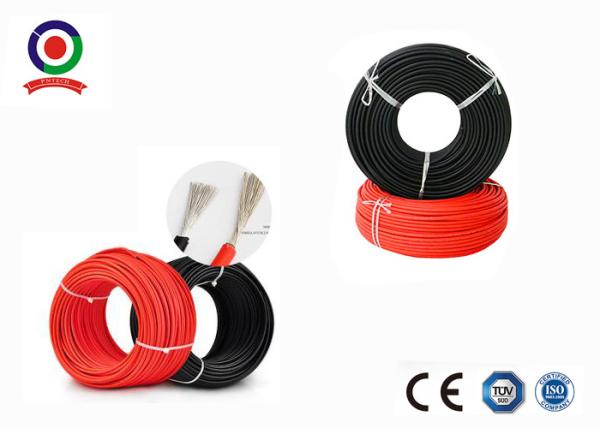

Pictures of 4mm2 DC Solar Cable

ZHEJIANG PNTECH TECHNOLOGY CO. LTD.

It was founded in 2011 and has 10 years of experience in photovoltaic cable production. The company has passed ISO9001 management system certification. The photovoltaic cable series has passed the German TUV and China CQC certification. Certificate covers 1.5sqmm-25sqmm. Our product is produced by special photovoltaic materials, using advanced electron beam irradiation cross-linking technic. Our product can be used for a long time in an environment of minus 40 degrees, and with strong UV resistance. Main Products: Photovoltaic cables, Photovoltaic connectors,PV Junction Box, Solar PV connectors, solar photovoltaic Controllers, PV inverters for solar energy, photovoltaic systems, batteries, etc.

Due to our high quality and good service, our products have been exported to all over the world such as UK, USA, Mexico, Germany, France, Poland, Netherland, Sweden, France, Portugal, Spain, Italy, Australia, Singapore, Malaysia, Thailand, etc.And our products are approved by TUV, CE and ISO9001.

How are we doing it is Skilled , long –term employee , satisfied customers , modern equipment , no-compromise – for – quality values , full range of services , experience , and a sincere commitment to satisfying the requirement of our customers.

Quality product performance and good reputation, our products are not only successful sales in China, and have been exported to more than 120 countries and regions in the world, including: Germany, Japan, Italy, Russia, Japan, South Korea, Turkey, Brazil , India, the United Arab Emirates, Saudi Arabia and other countries, the products are subject to a great welcome and praise.

Our main goal is to conserve the environment through generating clean, sustainable and efficient energy in order to ensure a "greener future” for all mankind. We have the responsibility to increase awareness in renewable energy and assist households and business owners to Go Green and reduce their operational costs.

We attend SNEC in Shanghai every year to show our products to customers all around the world.
