XLPE Insulated tinned copper twin core solar cable 2x4mm2 CE TUV certification

Construction:

1. Core Conductor: stranded tinned copper

2. Size: 2 core 4.0mm2

3. Cable OD: 12.5mm
4. Insulation: Electron-beam cross-linked annealed copper

5. Jacket XLPE black

6. Working voltage:AC: 600/1000V DC: 1800V
Maxium Voltage:1.8KV
Test Voltage: 6.5kV AC
7. Working Temperature:-40-90 º C
8. Bending Radiu:
Fixed: 4 x overall diameter
Flexed: 5 x overall diameter
Max. Conductor temperature: 120º C
Short-circuit max. Conductor temperature:250°C
Insulation resistance: 10 MΩ x km

9. Approved: TUV 2PfG 1169

10. High resistance against hear, cold, abrasion, UV, Ozone and hydrolyes Halogen free, flame ratardant

Application

These cables are designed for connecting photovoltaic system components inside and outside

of buildings and equipment with high mechanical requirements and extreme weather

conditions.

Standards

DIN EN 50618
Fire-resistance performance: IEC 60332-1
Low smoke emission : EN/IEC 61034-2
Halogen free according to EN 50525-1, Annex B
Low corrosivity of gases according to EN 50267-2-2, IEC 60754-2

Features:

1) Electron beam cross-linked materials do not melt or flow, even at high temperature, high resistance against heat, cold,abrasion, UV resistant, ozone and hydrolyses.
2) These cables provide the means to interconnect between photovoltaic(PV) panels and from panels to the inverter.
3) They operate at DC voltage and provide long life in exposed conditions.

FAQ:

1. When can I get the quotation?
Within 24 hours of getting the inquiry, if you are very urgent to get the price, please

call us to give complete specifications about the cable. price will be calculated soon.

2. How long about the delivery?
Usually within 3-4 working days after payment, mainly according to the quantity.

3. What's your payment terms?
We accept T/T (bank transfer), L/C

4. Do you accept the customized order?
Yes, we do.

5. Do you offer OEM & ODM?
Yes. OEM & ODM are available.

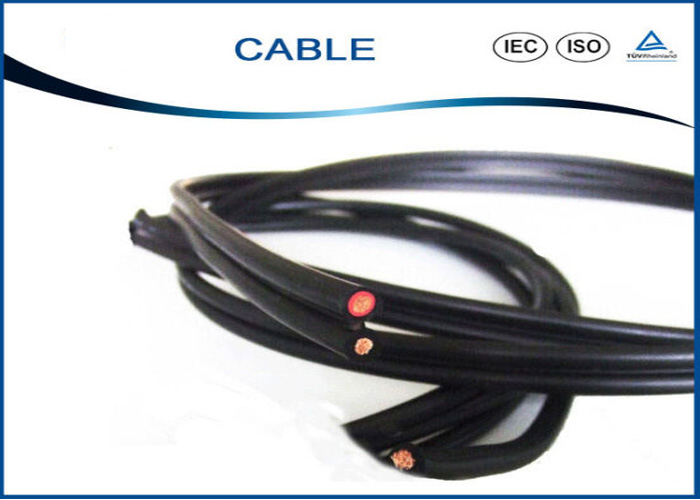

Picture of 4mm² twin core solar cable
