TUV CE standard Twin Core solar panel cable 4mm tinned copper conductor

Construction:

Conductor: Tinned Copper,according to VDE0295/IEC60228,Class5

Insulation: Electron-beam cross-linked Polyolefin Copolymer TUV 2PfG/1169

Sheath: Electron-beam cross-linked Polyolefin Copolymer TUV 2PfG/1169

Nominal Voltage : AC 600/1000V DC 1000/1800V

Characteristic: Heat-resistant flame retardant,UV/ozone/hydrolysis/climate resistance

Sheath Color :Black or as per customer's requeit

Temperature Rating:45°c upto +125°c -40°F upto +257°F

Ambient temperature:25years(TUV) -40°c upto +90°c -40°F upto +194°F

Max.Short circuit temperature:280°c,+536°F

Bending Radius:Fixed installation>4X Occasionally moved>5X

Application

These cables are designed for connecting photovoltaic system components inside and outside

of buildings and equipment with high mechanical requirements and extreme weather

conditions.

Standards

DIN EN 50618
Fire-resistance performance: IEC 60332-1
Low smoke emission : EN/IEC 61034-2
Halogen free according to EN 50525-1, Annex B
Low corrosivity of gases according to EN 50267-2-2, IEC 60754-2

Features:

1) Electron beam cross-linked materials do not melt or flow, even at high temperature, high resistance against heat, cold,abrasion, UV resistant, ozone and hydrolyses.
2) These cables provide the means to interconnect between photovoltaic(PV) panels and from panels to the inverter.
3) They operate at DC voltage and provide long life in exposed conditions.

FAQ:

1. When can I get the quotation?
Within 24 hours of getting the inquiry, if you are very urgent to get the price, please

call us to give complete specifications about the cable. price will be calculated soon.

2. How long about the delivery?
Usually within 3-4 working days after payment, mainly according to the quantity.

3. What's your payment terms?
We accept T/T (bank transfer), L/C

4. Do you accept the customized order?
Yes, we do.

5. Do you offer OEM & ODM?
Yes. OEM & ODM are available.

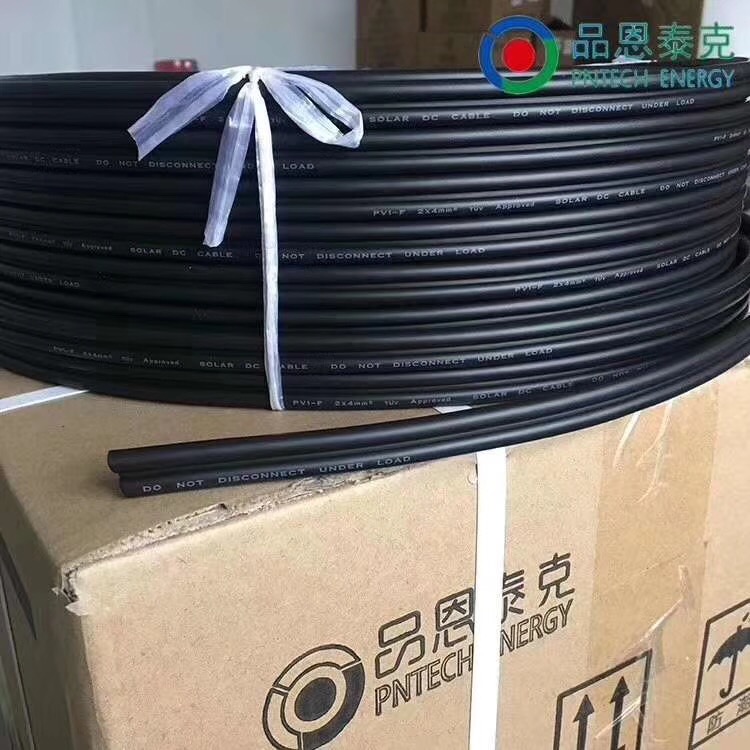

Picture of 4mm² twin core solar cable

ZHEJIANG PNTECH TECHNOLOGY CO. LTD.

It was founded in 2011 and has 10 years of experience in photovoltaic cable production. The company has passed ISO9001 management system certification. The photovoltaic cable series has passed the German TUV and China CQC certification. Certificate covers 1.5sqmm-25sqmm. Our product is produced by special photovoltaic materials, using advanced electron beam irradiation cross-linking technic. Our product can be used for a long time in an environment of minus 40 degrees, and with strong UV resistance. Main Products: Photovoltaic cables, Photovoltaic connectors,PV Junction Box, Solar PV connectors, solar photovoltaic Controllers, PV inverters for solar energy, photovoltaic systems, batteries, etc.

Due to our high quality and good service, our products have been exported to all over the world such as UK, USA, Mexico, Germany, France, Poland, Netherland, Sweden, France, Portugal, Spain, Italy, Australia, Singapore, Malaysia, Thailand, etc.And our products are approved by TUV, CE and ISO9001.

How are we doing it is Skilled , long –term employee , satisfied customers , modern equipment , no-compromise – for – quality values , full range of services , experience , and a sincere commitment to satisfying the requirement of our customers.

Quality product performance and good reputation, our products are not only successful sales in China, and have been exported to more than 120 countries and regions in the world, including: Germany, Japan, Italy, Russia, Japan, South Korea, Turkey, Brazil , India, the United Arab Emirates, Saudi Arabia and other countries, the products are subject to a great welcome and praise.

Our main goal is to conserve the environment through generating clean, sustainable and efficient energy in order to ensure a "greener future” for all mankind. We have the responsibility to increase awareness in renewable energy and assist households and business owners to Go Green and reduce their operational costs.

We attend SNEC in Shanghai every year to show our products to customers all around the world.
