PPO material IP67 Compatible 30A Male Female Connector for Solar
Panel
Connector Description:
Multi-Contact Connectors
Samlex's -2 Kit contains 1 male and 1 female solar panel connector.
This type of connector system
is easy to install and uses "snap-in" safety locking tabs to lock
two mating connectors, thereby avoiding
unintentional disconnection. Also when locked, the mating contacts
are sealed against ingress of dust and
water. Specifi cations are as follows:
Connectors supplied with this kit are for use with wire size AWG #
10 or AWG # 12 with outer insulation
diameter of 3 - 6 mm
Contact diameter 4 mm
Maximum rated current - 30 A
Maximum system voltage - 1000 V
Degree of ingress protection when connected and properly locked -
IP67
Temperature range 40°C to +90°C
TüV Rheinland - type approved, UL listed.
Construction of Connectors
The connectors can be crimped / soldered to wire size AWG #10 or
AWG # 12 with an outer insulation
diameter of 3 to 6 mm.
Assembly Instructions
During self assembly ,parts and tools other those stated are used
or if the preparation and assembly instructions described here are
disregarded then neither safety nor compliance with the technical
data can be guaranteed.
For protection against electric shock ,PV Connectors must be
isolated from the power supply while being assembled or
disassembled
The end product must provided protection from electric shock
Unplugging under load:PV plug connections must not be unplugged
while under load.They can be placed in a no load state by switching
off the DC/AC converter or breaking the AC circuit
interrupter.Plugging and unplugging while under voltage is
permitted
Disconnected connectors should be protected from dirt and water
with sealing caps.
Plugged parts are watertight IP67
| Product Name | Connector |
| Rated Current | 30A(2.5~6mm2) |
| Rated Voltage | 1000V DC |
| Test Voltage | 6000V(50HZ, 1min) |
| Overvoltage category/Pollution degree | CAT III/2 |
| Contact resistence of plug connectors | 1 mΩ |
| Conatct material | Copper, Ag plated |
| Insulation material | PC |
| Degree of protection | IP20/IP67 |
| Flame class | UL94-V0 |
| Safety class | II |
| Suitable cable | 2.5-6mm2 |
| Insertion force/Withdrawal force | ≤50N/ ≥50N |
| Connecting system | Crimp connection |
| Temperature range | -40ºC~+125ºC |
| Packing unit | 1000pcs |
| Minimum order quantity | 1000pcs |
| Weight per Piece (excluding packing) | 25g |
| Custom tariff number | 8536690000 |
| Country of origin | China |
Advantage:
• Simple,quick,safe and effective filed assembly
• Develop independently,innovative design,have independent
intellectual property rights,adaptive to connector directly
• High mechanical endurance
• High current and voltage carrying:30A,1000VDC
• Low transition resistance
• Innovative sealed,waterproof,dust resistance design:IP68
• Excellent plastic material ,UL 94-V0,wide temperature range:-40°c
to 90°c,weather and UV resistant for long-time outdoor application
• Approved by TUV
FAQ:
1. When can I get the quotation?
Within 24 hours of getting the inquiry, if you are very urgent to
get the price, please call us to give complete specifications about
the cable. price will be calculated soon.
2. How long about the delivery?
Usually within 3-4 working days after payment, mainly according to
the quantity.
3. What's your payment terms?
We accept T/T (bank transfer), L/C
4. Do you accept the customized order?
Yes, we do.
5. Do you offer OEM & ODM?
Yes. OEM & ODM are available.

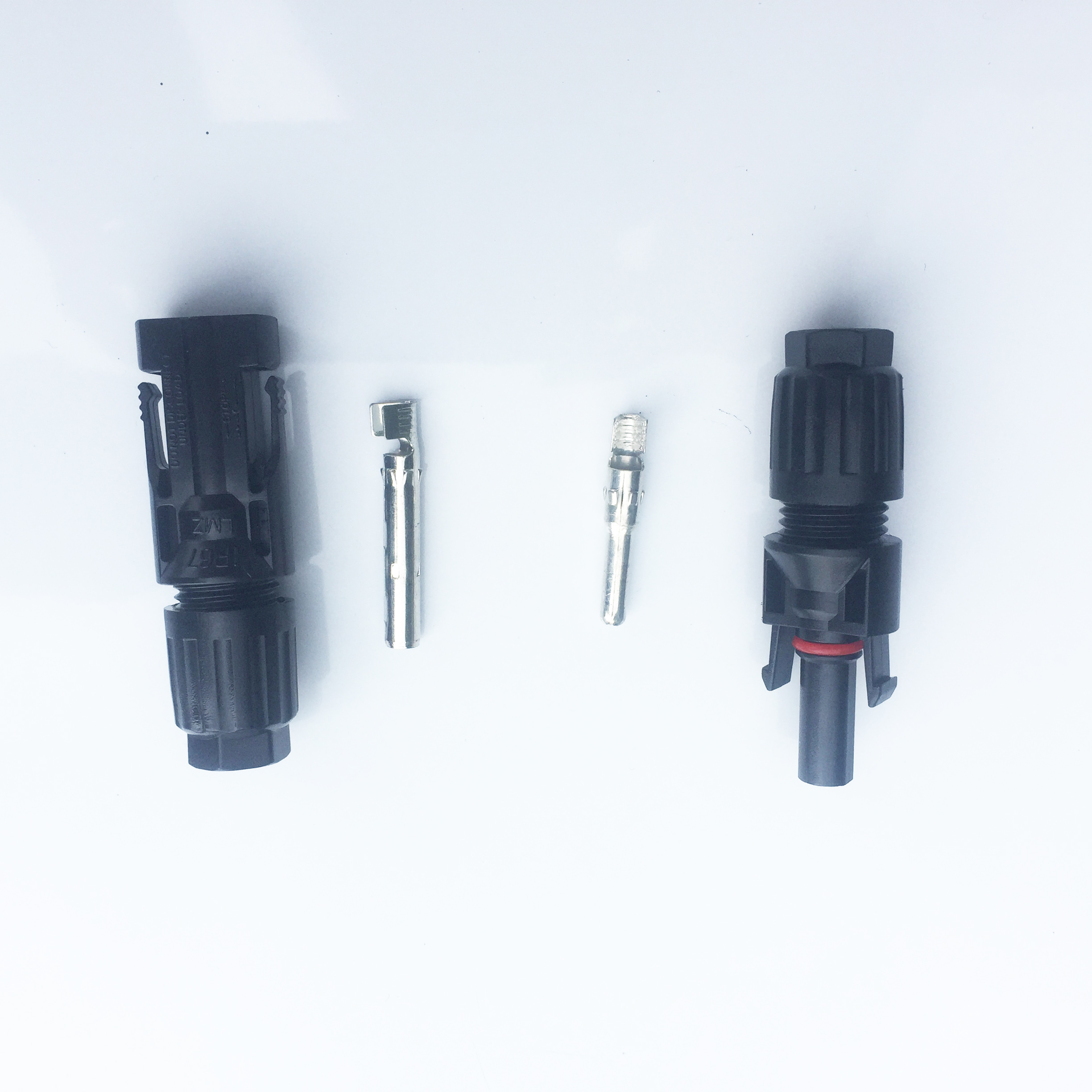

Picture of solar panel connectors
