Y Branch Solar Connector CE Approved Female to Male for
Photovoltaic System
Description:
1. Compatible with cable coupler solar connector
2. 15 Years of production experience in solar connectors
3. CE approved & Quick and easy to install
4. Protection class IP67 Suitable for outdoor harsh environments
5. Stable connection & Reducing maintenance cost
6. Free Sample is available
| Name | Solar Cable |
| Connector | Connector name | Solar Connector |
| Rated current | 30A |
| Rated voltage | 1000V DC |
| Overvoltage category | CATIII |
| Degree of protection | IP67 |
| Flame class | UL94-V0 |
| Safety class | II |
| Temperature range | -40℃ ~ +110℃ |
| Insertion force/withdrawal force | ≤50N/≥50N |
| Wire/Cable | Cable Guage | 16AWG,14AWG,12AWG,10AWG,(1.5MM²-6mm²) |
| Cable conductor | Tinned copper or bare copper |
| Cable color | Red&Black |
| Cable Insulation | XLPE |
| Cable Length | 0.1m-10m Optional |
| function | UV Resistant,High Resistance against oil,greases,oxygen and
ozone,Microbe-resistant,High wear and abrasion resistance |
| Temperature Range | -40℃ ~ +90℃ |
| OEM/ODM | Yes.Offered. |
| Product warranty time | Return Policy: Provide within half of a month. |
|
| Warranty: 1year. |
Advantage:
1. low power loss
2. solarconnector for solar power system
3. allthe connection made by double fixed connection
4. withthe capacity of anti-aging and resistance to ultraviolet
radiation on the outcover
5. withconvenient installation, strong commonality
6. to meet the using requirement under bad outdoor condition
Assembly Instructions
1. During self assembly, parts and tools other than those stated by
R&X are used or if the preparation and assembly instructions
described here are disregarded then neither safety nor compliance
with the technical data can be guaranteed.
2. For protection against electric shock, PV connectors must be
isolated from the power supply while being assembled or
disassembled.
3. The end product must provide protection from electric shock.
4. Unplugging under load: PV plug connections muct not be unplugged
while under load. They can be placed in a no load state by
switching off the DC/AC converter or breaking the AC circuit
interrupter. Plugging and unplugging while under voltage is
permitted.
5. Disconnected connectors should be protected from dirt and water
with sealing caps.
6. Plugged parts are watertight IP67
FAQ:
1. When can I get the quotation?
Within 24 hours of getting the inquiry, if you are very urgent to
get the price, please call us to give complete specifications about
the cable. price will be calculated soon.
2. How long about the delivery?
Usually within 3-4 working days after payment, mainly according to
the quantity.
3. What's your payment terms?
We accept T/T (bank transfer), L/C
4. Do you accept the customized order?
Yes, we do.
5. Do you offer OEM & ODM?
Yes. OEM & ODM are available.

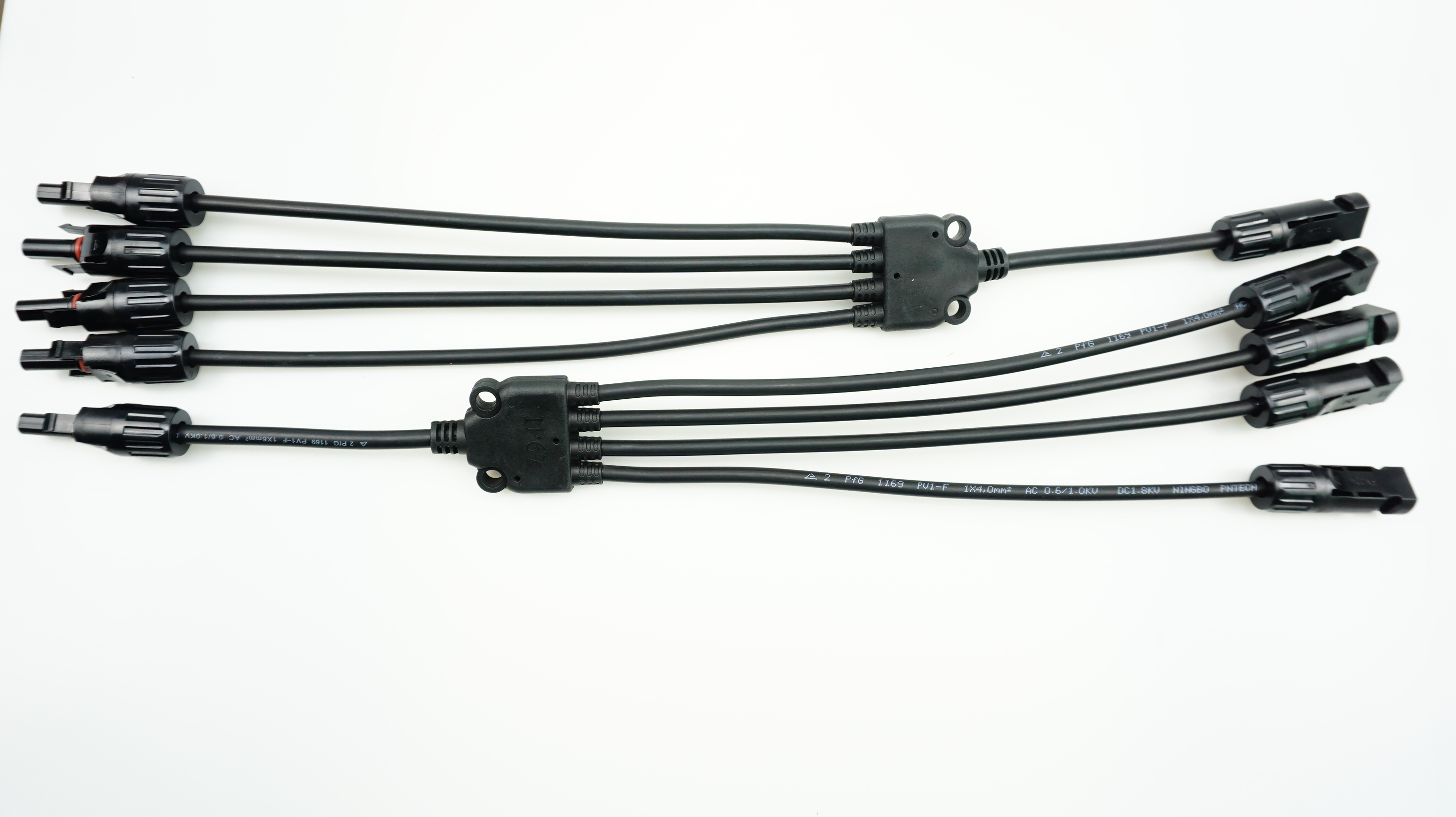

Picture of Y Branch Solar Connector
