    Quick Connect 25A DC 1000V Solar Fuse Connector

    Ask Lasest Price
    Brand Name : Pntech
    Model Number : PV004-F
    Certification : CE/ISO9001
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 5000pcs per day
    Delivery Time : 3-10days
    • Product Details
    • Company Profile

    Quick Connect 25A DC 1000V Solar Fuse Connector


    1000V DC 25A IP67 Solar in line Fuse Connector for Solar System Protection


    Description:


    1. Connector adopts touch of reed with inne-knob type.

    2. Auto-lock enable connection more easy and reliable.

    3. Popular figure suit most of field installation.

    4. Quickly to connector.

    5. Water proof and prevent dust.

    6. Long life.


    Product Name:
    Connector With fuse
    Housing Material:
    PPO
    Contact Material:
    Copper,sliver plated
    Pin Dimention:
    4.0 mm
    Contact Resistance:
    Less than 0.5 m ohm
    Application Class:
    Class A
    Rated Voltage:
    TUV1500V DC/UL 600V DC
    Rated Current:
    1~30A
    Test Voltage:
    6KV (5Hz, 1Min)
    Flame Class:
    UL94-V0
    Plug Force:
    Less than 50N
    Withdrawal Force:
    More than 50N
    Rated Temperature:
    -40°C~+85°C
    Upper Limited Temperture:
    100°C
    Waterproof:
    IP67/IP68
    Pollution Degree:
    2
    Protection Degree:
    Class II
    Standard:
    TUV
    Service Life:
    20 years
    Suitable Cable Cross Sections:
    2.5mm/4mm/6mm (14AWG/12AWG/10AWG) PV Wire

    Advantage:


    * It can be used in harsh environment

    * Double seal rings for better waterproof effect

    * Created seal, design of dust proof

    * Quick & simple assembly processing and simple removal of plugs without the aid of any extra instrument

    * Lower contact resistance

    * With excellent aging resistance and UV endurance

    * Created seal, design of dust proof

    * Load capability with big current and high voltage

    * Strong pulling force capability

    * Resistance of extra high & low temperature and fireproof


    FAQ:

    1. When can I get the quotation?
    Within 24 hours of getting the inquiry, if you are very urgent to get the price, please call us to give complete specifications about the cable. price will be calculated soon.
    2. How long about the delivery?
    Usually within 3-4 working days after payment, mainly according to the quantity.
    3. What's your payment terms?
    We accept T/T (bank transfer), L/C
    4. Do you accept the customized order?
    Yes, we do.
    5. Do you offer OEM & ODM?
    Yes. OEM & ODM are available.

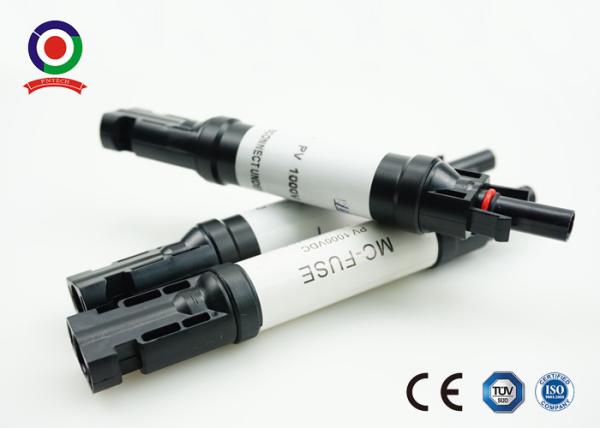

    Picture of fuse connector
